CORDONA QUICKSHIFTER KIT + BLIPPER DUCATI PANIGALE V2 2020-2024

CORDONA QUICKSHIFTER KIT + BLIPPER

Complete with specific wiring for your motorcycle model.

Analogue Strain Gauge Load Cell for ECU’s with upshift and auto blipper for downshift function. Used for advanced ECU’s like Magneti-Marelli, Motec, Mectronik, MotoGP ECUs as well as for OEM, Kit ECU's and flashed ECU’s for street bikes with an analogue 0-5V input.

The GP ASG Superbike shifter greatly improves the gear change performance and reliability compared to OEM shifters, that can often lack feel and gives longer shift times. Compared to a stock OEM shifter you will notice a far superior distinct and smoother action, allowing faster gear change performance like top GP and WSBK systems.

With this performance upgrade the bike will be more stable, use less traction control and upset chassis less during gear changes, especially when shifting mid corner at lean angle.

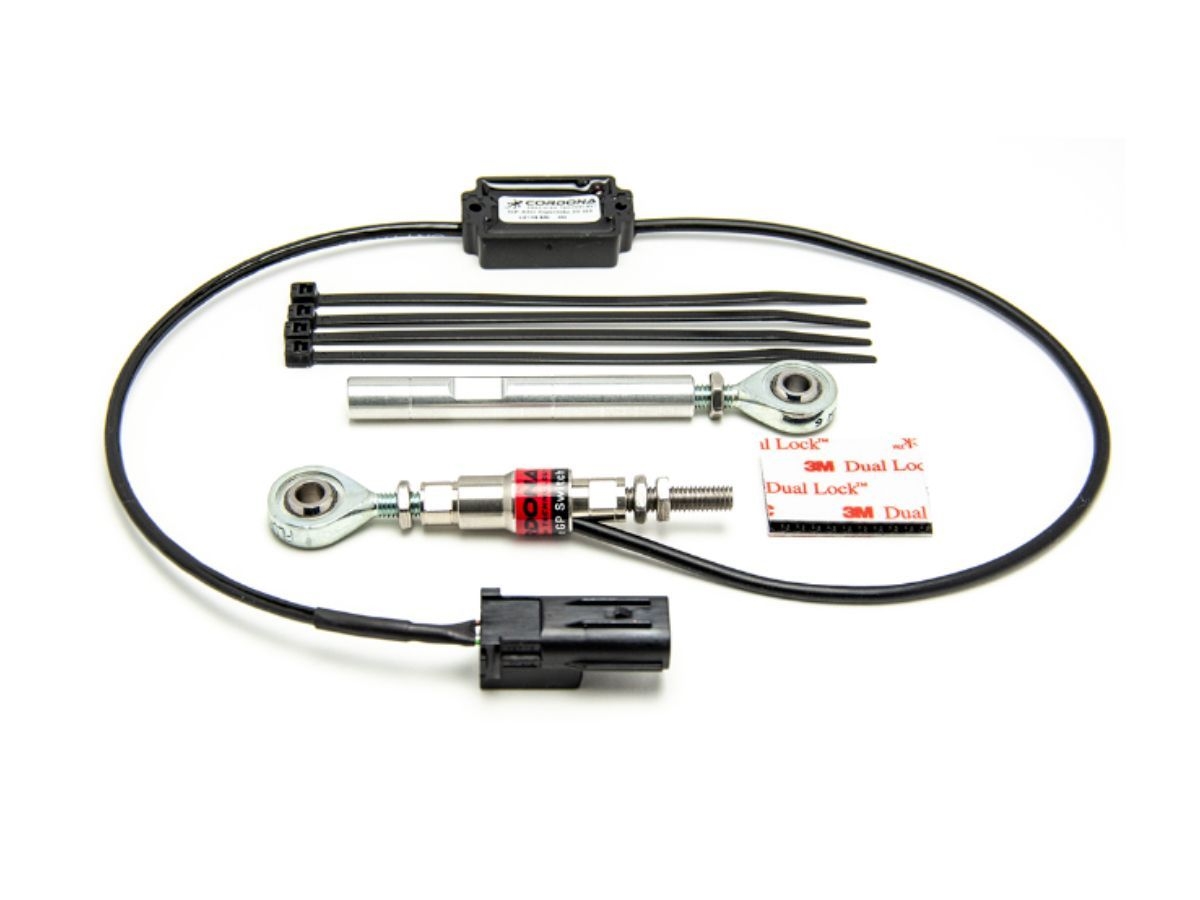

This kit included:

420EVO-SPEC-125

• GP ASG 420Evo Quickshifter-Blipper

• Complete gear linkage 125mm* aluminum rod with M6 left and right threads, left and right rod ends/uniballs** left-right nut-stud, 4 cable ties and 3M Velcro

*different rod lengths can be ordered if needed, see Spare part and Installation Materials.

** high spec SKF racing rod ends/uniballs can be ordered separately, see Spare part and Installation Materials.

Main features:

- Superbike GP ASG Strain Gauge Highly sensitive analogue load cell 0-5V

- Strain gauge technology, no moving parts in the sensor

- Dual linear analogue output to the bike ECU, 2.5 and 1.25V (idle), range 300N to 0.5V/4.5V

- EVO version has an output signal with a "speed dependent hysteresis" character

- Configurable push or pull direction

- 5-15V DC power supply

- 20MHz processor with adaptive calibration for temperature and vibration

- Maximum sensor temperature 125°C (150°C for short periods), electronic module 85°C

- Temperature drift <0.04% within the operating range -10°C to 125°C.

- Sensor and module completely sealed and protected from the elements (IP68)

- High precision CNC machined stainless steel housing

- Dimensions; 45 mm long, 14 mm diameter

- total weight sensor-electronics 55 g, complete connection incl. rod-uniball 120 g

- 'magic' threads M6, left and right threads at both ends of the sensor

- CE mark (EMC radiated)

N.B. This picture is only indicative

FOR MORE INFORMATION PLEASE CONTACT US
